Asynchronous timewarping

Asynchronous timewarping for smart glasses to reduce MTP latency and to increase framerate.

Abstract

To enable high-performance XR experiences on mobile smart glasses, I developed a real-time rendering engine based on the Vulkan API with the following goals:

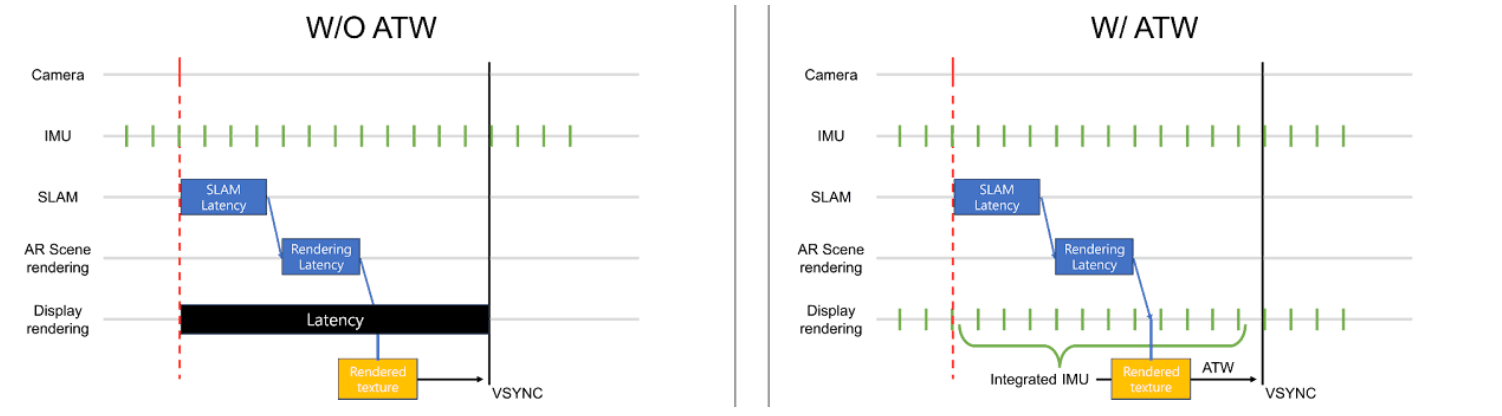

Reduce motion-to-photon (MTP) latency through IMU (Inertial Measurement Unit) data fusion.
Increase framerate using multithreaded stereo rendering.
Design a modular software architecture compatible with computer vision systems such as SLAM and Image Tracker.
Ensure reusability and extensibility across tethered and untethered XR platforms.

Problem

XR applications on mobile smart glasses face several critical challenges:

High MTP latency, which causes visual lag and motion sickness.
Low framerates, especially when running computationally heavy tasks like SLAM and image tracking.
Limited performance of traditional rendering pipelines on mobile or embedded hardware.
Difficulty integrating CV modules into tightly constrained rendering systems without sacrificing responsiveness.

Contribution

Architected the Vulkan rendering pipeline from scratch for mobile XR.
Applied asynchronous programming and concurrency techniques to improve real-time performance.
Prioritized modular, reusable software design, making the system extensible across other applications.
Focused on low-level optimization, integrating tightly with hardware (IMU, display).
Delivered a production-ready, cross-platform rendering module adaptable to future XR devices.

Result

Reduced MTP latency by 92ms (80% reduction), enabling more responsive user experience.
Increased framerate from 30Hz to 90Hz (300% increase) in SLAM-integrated scenarios. like SLAM and image tracking.
Verified improvements through simulation and hardware-in-the-loop testing.
